The SS34+ Vertical VHF HF Antenna is a 2-40 Meter 304 stainless steel telescopic whip with 17-sections that extends to 34.5 feet and collapses to approximately 29 inches.
Vertical VHF HF Antenna Variants
1/4 Wave Vertical: For the approximate deployed element length in feet for a 1/4 vertical, divide 234 by frequency in MHz for deployment from 2-40M.
1/2 Wave Vertical: For the approximate deployed element length in feet for a 1/2 vertical, divide 468 by frequency in MHz. This option has 2.14db more gain than a 1/4 wave vertical and can be configured from 2-20M.
5/8 Wave Vertical: For the approximate deployed element length in feet for a 5/8 vertical, divide 585 by frequency in MHz. This option has 3db more gain than a 1/4 wave vertical and can be configured from 2-17M.
Tuning
Tune by extending or retracting the SS-34+ telescopic whip for resonance for use as an omni-directional vertical on 40 through 2 meters when radials are installed on the ground side of a sturdy mounting solution.
Specifications
PEP Rating: 1000W
Materials: Stainless Steel
Band Coverage: 2M to 40M with radials
Dimensions
Base Diameter: ~ 1.00″
Largest Element Diameter: ~ 0.90″
Length (Collapsed): ~ 29″
Length (Extended): ~ 34.5′
Weight: ~ 2.3 lb.

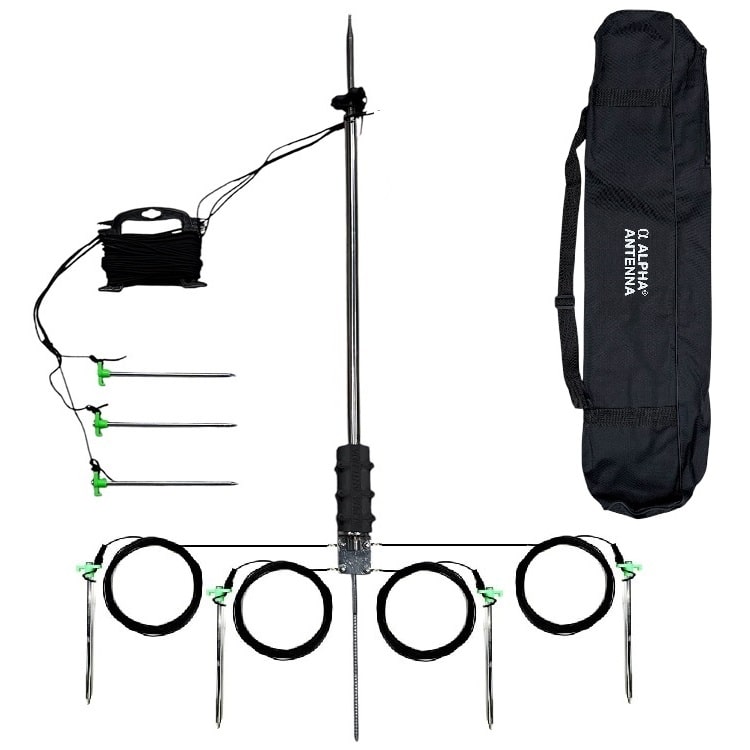

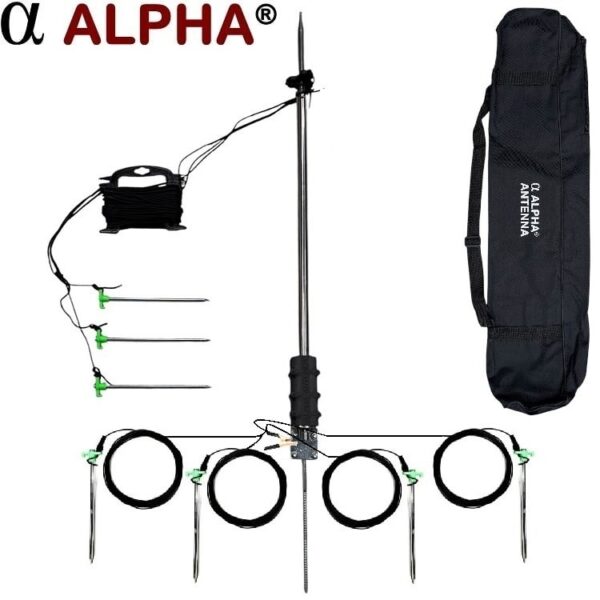

Included
- A zippered non-padded gear bag with carrying strap that perfectly stores the SS34+ element and the following items:

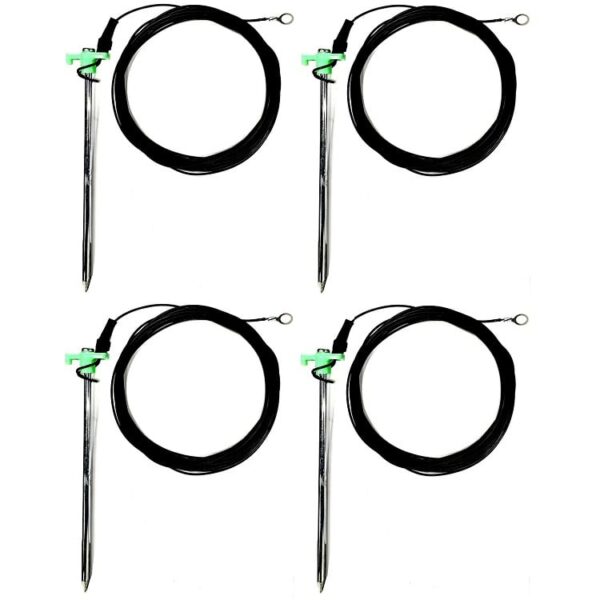

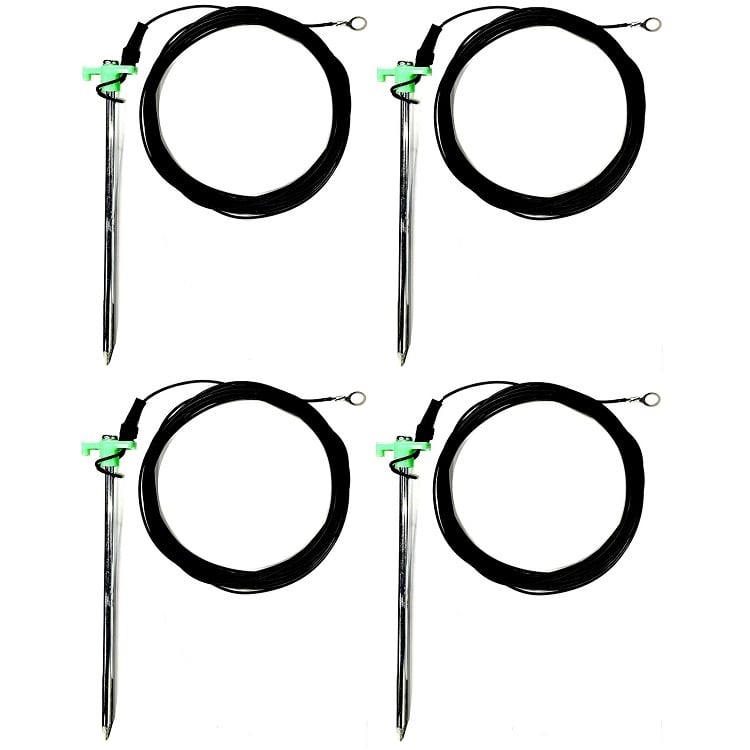

- A 4 x 35′ Radial Kit that provides a ground plan to increase performance when attached to the bolts on the mount.

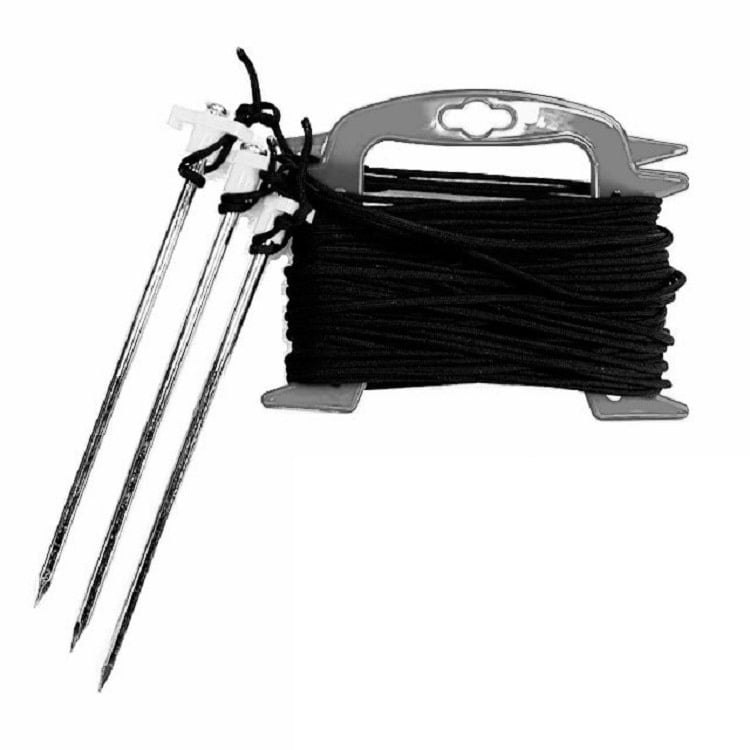

- A Guying Kit for even more stability.

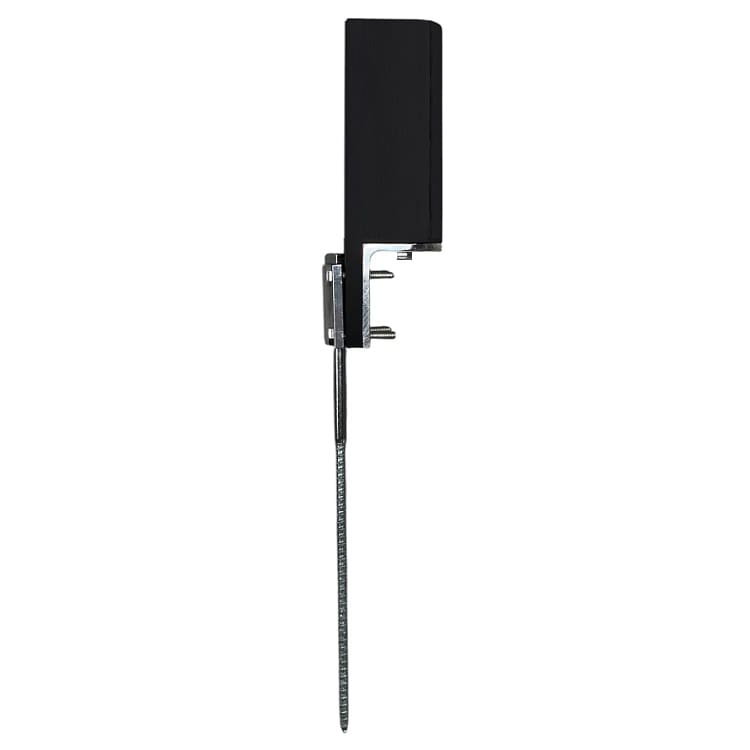

- The SS34+ Mount with UHF L-Adapter for easy deployment
Deployment Video
WARNINGS
Electrical precautions should always be taken when deploying antennas
The SS34+ Vertical VHF HF Antenna should only be used with a sturdy mounting solution
The SS34+ should not be used with the Alpha Antenna Auto Match nor the HexTenna Hub
It is necessary to Guy this system with ropes and anchors to the included Guying Adapter when deployed for 30/40 meters or it will bend and sway. Guying may also be required on other bands if wind conditions require it.
Features
Usage: Perfect for EmComm, POTA, SOTA, DXpeditions, and other portable deployments.
Durability: Laser engraved with Alpha Antenna on the base adapter, which is milled and fitted to the telescopic elements (not crimped) for ruggedness and stability.
We Listen
We are dedicated to improving all of our antennas. Specifications and descriptions are subject to change without notice.
