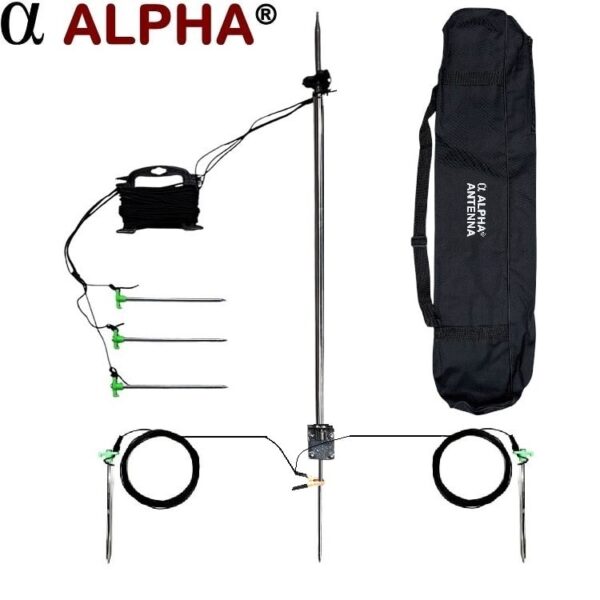

Portable VHF UHF HF Ham Radio Antenna that covers 440 and 220 MHz plus 2-20 meters that we highly recommend guying with the included guying kit. To increase the performance of the ground radials, deploy the system with the included mast mount on an optional tripod. This alters the radials (when raised and sloping away from the antenna) into tuned counterpoise elements when they are rolled up or out for the lowest SWR.

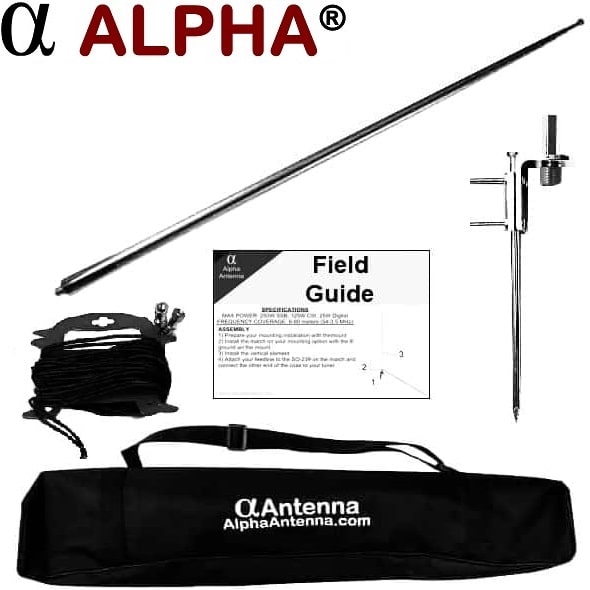

Included
1 – 17′ 9″ Telescopic Vertical Element
2 – 18 Counterpoise/Radial Elements with stakes on their ends
1 – Mount for raised deployments
1 – 10” ground spike for ground mount deployments
1 – Non-padded bag with shoulder strap
1 – Ham Radio Antenna User Guide
1 – Non-padded bag with shoulder strap
1 – L-Adapter
1 – Guy ropes
Specifications
Frequency: 220/440MHz and 2 to 20 meters
Max Power (Watts): 1200 PEP SSB, 600 CW, or 300 watts for digital modes
RF Connection: SO-239
Analysis
| VERTICAL CONFIGURATION | |
| Band | SWR |
| 440 MHz | 1.39:1 |
| 220 MHz | 1.1:1 |
| 2 Meters | 2.4:1 |
| 6 Meters | 1.6:1 |
| 10 Meters | 1.02:1 |
| 12 Meters | 1.15:1 |
| 15 Meters | 1.05:1 |
| 17 Meters | 1.17:1 |
| 20 Meters | 1.49:1 |
We listen!
Specifications, prices, and descriptions are subject to change without notice.
