6-20M Stealth MagLoop Antenna

Sale!
Rated 5.00 out of 5 based on 4 customer ratings

Original price was: $399.00.Current price is: $199.00.

Model: Stealth MagLoop Antenna

6-20M, expandable to VHF UHF HF 6-40M

USER MANUALS

Options
Coax with BNC and PL-259 connector
$27.95
SWR Sounder for any MagLoop
1 × SWR Sounder for any MagLoop

Availability: In stock

Original price was: $64.95.Current price is: $50.00.
5/8 11 to 1/4 20 adapter
$19.95
EmComm Mast and VHF UHF 15-40 Loop
$100.00
Alpha Gear bag
1 × Alpha Gear bag

Availability: In stock

$39.95
EmComm Loop Legs
$34.95

Product Overview

Compact 6-20 meter portable magnetic loop for stealth, limited-space, and rapid-deployment operation, with an available expansion path to VHF/UHF and 15-40 meters.

The Stealth MagLoop Antenna is a compact portable magnetic loop designed for operators who need a small-footprint 6-20 meter TX/RX antenna. Alpha Antenna positions the system for stealth and limited-space deployment and states that it can be set up in about 60 seconds. The standard loop tunes 6 through 20 meters and can later be expanded with the available EmComm Loop mast and inner/outer loop option for VHF, UHF, and 15-40 meter operation.

Key Specifications

Specification Details
Frequency coverage
6-20 meters (14-54 MHz)
Maximum power 50 W PEP SSB; 25 W CW; 10 W Digital
Impedance 50 ohms
Connector Female BNC
Loop size 10-inch diameter
Mount Female 5/8-11 inch
Environmental Ingress protection IP-63
Directionality Semi-directional
Operating objective NVIS and DX
Weight 3 lb
Shipping dimensions 12 × 10 × 4 in

Best For

  • Stealth and limited-space amateur radio operation.
  • Portable deployments where compact size and rapid setup are priorities.
  • Indoor or temporary placement on a table or desk in an office, apartment, camper, tent, or emergency-response vehicle.
  • SSB, CW, and digital operation within the published power limits.
  • Operators who want a 6-20 meter system now with an available expansion path to additional VHF/UHF and 15-40 meter coverage.

What’s Included

  • Tuning box with 5/8-11 Female mounting threads
  • LMR400 outer loop, with
  • Integrated Inner Coupling Loop and BNC-F adapter

Setup and Operation

Reshape loop toward oval for 6-10M and circle for 12-20M while tuning. Published setup time is about 60 seconds.

Demonstration

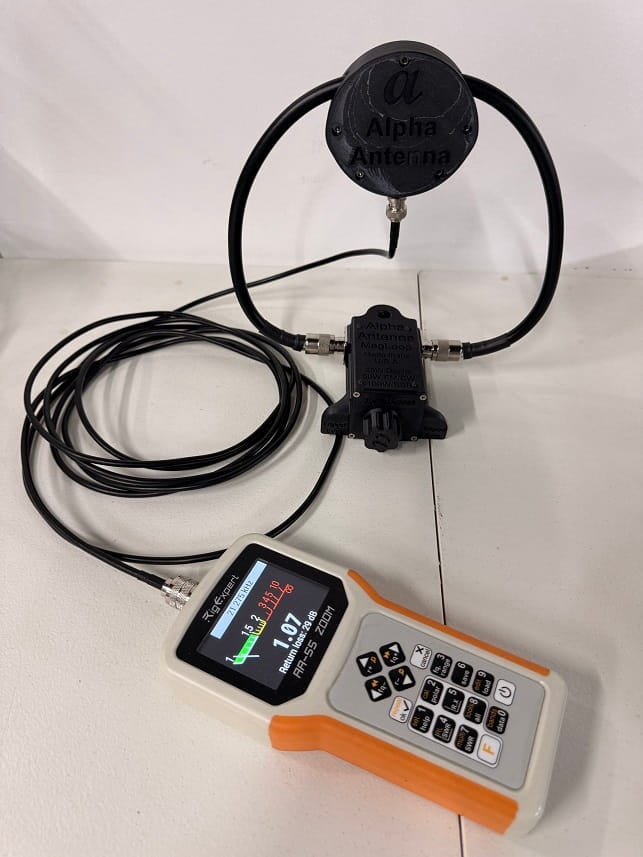

Tuning / SWR

Tuning 6 through 20m can see increased efficiency when the loop is reshaped into an oval for 6-10M and then into a circle for 12-20M.

20 Meters = 1.48:1 17 Meters = 1.07:1
15 Meters = 1.07:1 12 Meters = 1.36:1
10 Meters = 1.46:1 6 Meters = 1.96:1

Performance and Technical Data

Alpha Antenna publishes calculated efficiency figures for the standard 2.18055-foot-circumference loop with a 0.32-inch conductor diameter. The figures below reproduce the values shown on the current product page and compare the loop with a resonant dipole installed one-half wavelength high. Reference Calculator used for efficiencies: STL Antenna Calculator

Band / Center Frequency S-Units Loss Published dB Figure
6M / 52 MHz 0.62 -3.7 dB below 100%
10M / 28.85 MHz 1.87 -11.2 dB below 100%
12M / 24.94 MHz 2.22 -13.3 dB below 100%
15M / 21.225 MHz 2.60 -15.6 dB below 100%
17M / 18.118 MHz 3.00 -18.0 dB below 100%
20M / 14.175 MHz 3.62 -21.7 dB below 100%

On-Air Results

Independent reports for SSB contacts made from California during a two-hour period show an average signal report of 4.3/3.2 on 20 meters and 5/3.8 on 10 meters, per the following charts.

Band 20 Meters
Signal Report Call Sign Location
5/3 N6FCM California
5/3 KA6NPD California
3/3 KC7DTR Utah
5/2 N6WL California
5/5 KJ7RPL Oregon
4/3 KK7MIE Idaho
5/4 W2AJG Arizona
5/5 KG7MAN Oregon
5/1 N6WL California
3/2 W3LBY Oregon
2/3 KK7OJK Washington
4/3 W7NFR Oregon
5/5 K7KNB Oregon
4.3/3.2 AVERAGE SIGNAL REPORT
Band 10 Meters
Signal Report Call Sign Location
5/5 KD9REG Indiana
5/5 K0MJ Kansas
5/3 KC5NVZ Texas
5/3 KS0MIK Kansas
5/3 K0PJR Kansas
5/3.8 AVERAGE SIGNAL REPORT

Options

Optional coax, SWR Sounder, tripod adapter, VHF/UHF/15-40M expansion loop components, bag and legs.

Support Resources

We Listen

We are dedicated to improving all of our systems. Specifications and descriptions are subject to change without notice.

5.0
Based on 4 reviews
5
100
100%
4
0%
3
0%
2
0%
1
0%
1-4 of 4 reviews
  1. AM

    Verified reviewVerified review - view originalExternal link

    Excellent construction, quality materials used, and performance. Overall satisfaction with purchase and excellent customer service.

  2. P

    Verified reviewVerified review - view originalExternal link

  3. JI

    Verified reviewVerified review - view originalExternal link

  4. DS

    Verified reviewVerified review - view originalExternal link

    Great antenna, grest price and fast shipping!

Weight 3 lbs
Dimensions 12 × 10 × 4 in
Objective

,

Band

,

Environment

, , ,

Type

Brand

product type

availability

Color

,

condition

Manufacturer
