Product Overview

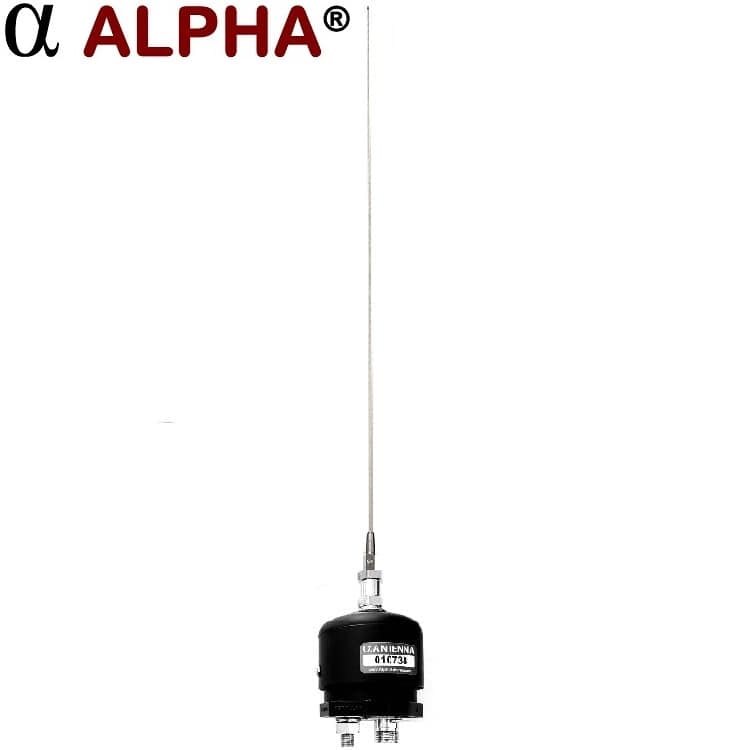

Rugged 6-40 meter mobile HF antenna requiring an external tuner but no physical band-change adjustments.
Key Specifications
| Specification | Details |
| Bands | 6,10,12,15,17,20,30,40M |
| Power | 100W PEP SSB; 50W CW; 10W Digital/FM/AM |
| Weight | 32 oz |
| Deployed length | 5 ft 5 in |
| External tuner | required |
Best For
- Vehicle HF operation
- EmComm mobile use
- Operators wanting band changes without whip adjustments
What’s Included
- 5-ft stainless steel whip and ferrule
- Black AutoMatch with 3/8-24 stud and SO-239
Setup and Operation
Mount to bonded vehicle metal as high as practical, keep the whip away from parallel vehicle-frame alignment, and connect an external tuner with the recommended 18-25 ft feedline.
Performance and Technical Guidance
This Mobile HF antenna requires:
- No changing of whips
- Zero physical adjustments to change bands
- No external power or control interface box
- An external tuner
Videos
Analysis

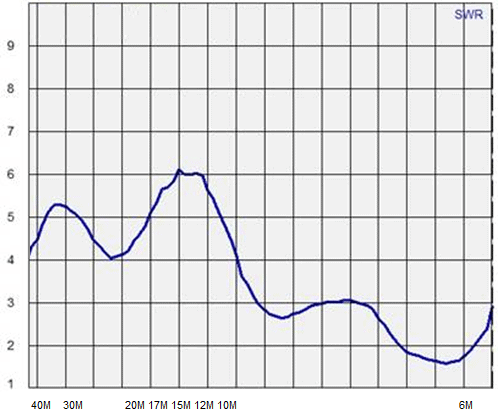

Native SWRs are handed off to an external tuner, which is required. A recommended feedline 18 to 25 feet is recommended.
| Band | Native SWR | SWR Once Tuned |
| 6M | 1.8 | 1.2 |
| 10M | 4 | 1.4 |
| 12M | 5.8 | 1.6 |
| 15M | 6.1 | 1.8 |
| 17M | 5.1 | 1.5 |
| 20M | 4.1 | 1.4 |
| 30M | 5.2 | 1.5 |
| 40M | 4.4 | 1.4 |
Read More Here about Optimizing the HF Alpha MOTO Antenna
Mounts
Because there are hundreds of car variations throughout the years, we created the following URL so you can select and work with those who sell mounts for many types of vehicles:
Just remember, it’s not so much the Mount, but it is instead the location that matters for best performance. To that end and ignoring those who say to ‘drill a hole in the middle of your roof’, the best ‘practical’ place to install this antenna is the passenger side front wheel well or the passenger side rear bed rail.
NOTE – Please choose a mount that has a Female 3/8-24 Nut for mounting the 3/8-24 Male Molt that is used to install the MOTO. Just leave enough clearance for your coax at the bottom of the MOTO or purchase the optional UHF Elbow Adapter and/ or Riser Kit.
Warning
Never Remove or Loosen any of the Bolts, Washers, Nuts, or Caps on the AutoMatch
Options
For even more Effective Radiated Power when parked, either the optional 9’4″ element for 10-40M or 60′ element for 10-80M can be deployed without removing the MOTO from your vehicle. Just remove the 5′ whip and replace it with either of the optional elements.
Additionally, tuner-free operations and increased power handling to 250 PEP SSB, 125 CW, or 25 watts for digital modes is enabled when the 60′ element for 10-80M is installed.
Installation
- Ensure there is as much metal directly under the mount & antenna as possible. Searching for a Fender Mount that fits your vehicle is a good place to start. You may also need our Riser Kit for various mounts for what you select.
- Ensure the mount is placed as high as possible and that it connects to the metal on your vehicle.
- Don’t run the whip/element parallel to the frame of your vehicle, which is the ground.
- Attach your tuner to the mobile HF antenna with 18 to 25 feet of coax.
MOUNTS – We do not recommend using a lip or magnetic mount, because losses on 40M become too great when a direct surface mounting hardware is not used. If you do end up using a magnetic mount, then the widely available Tri-Magnetic Mount should be used to increase the safety and capacitive grounding of such a mount. Just note that you will need to cut the coax off and short the braid to the center conductor of the coax for magnetic mounts in order to complete the path to ground.
Performance guarantee from the Founder of Alpha Antenna. “This antenna works very well with an external tuner on 6, 10, 12, 15, 17, & 20 meters. On 30 it works well, and you’ll make decent regional contacts on 40 meters. On 60 & 80 meters, it’s a receive only antenna, although contacts have been logged.”
