6-80M HF FMJ MIL 2.0 antenna + Mount
$550.00
MODEL: Mil 2.0
HF FMJ MIL 2.0 Antenna for 6-80 Meters a.k.a. EzMilitary
This antenna system that is small and portable for light rapid 6-80 meter deployments without requiring a tuner from Alpha.
Install the Alpha Match, Mil 2.0 Whip, Grounded Counterpoise and NVIS Element with the include mount for mast sized up to 1.25″ O.D. These are the building blocks to rapidly deploy efficient and robust portable configurations that will meet your mission objectives.
HF operations
This antenna is for targeted rapid deployment of ALE, Digital, CW, SSB, and AM modes. The MIL (Military) 2.0 enhances high band DX and low band NVIS (Near Vertical Incident Skywave). This enables a variety of modular portable system that enables HF Antenna Configurations used to meet mission objectives.
Technical Data:
Weight: 80 ounces
Stowed Size: 19 x 10 x 5 inches
Environmental operating parameters: -15 to 199 degrees Fahrenheit and winds up to 45 Mph
Antenna Type: Standing L
Physical Mounting Hardware on Match: 3/8 24 bolt
RF Connection: SO-239
Max Power (Watts): 250 PEP SSB, 125 CW, or 25 watts for digital modes NOTE – The MIL-STD-188 M110a digital communications mode is rated at bursts of 100 watts digital for up to 1 minute using the MIL-STD Data Modem Terminal (MS-DMT) and Automated Message Terminal (AMT) software applications.
Impedance: 50 ohms
Supported Bands: 6m, 10m, 12m, 15m, 17m, 20m, 30m, 40m, 60m, 80m

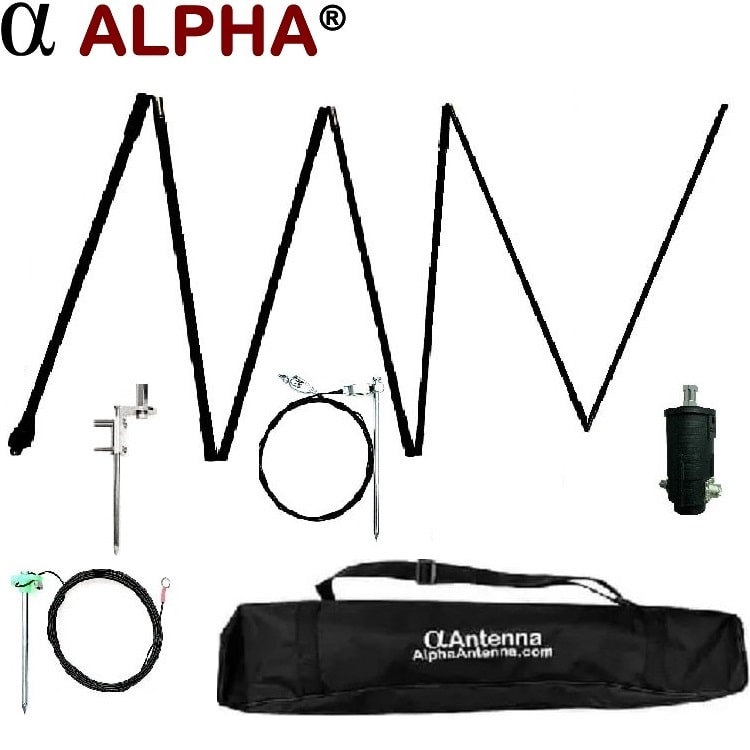

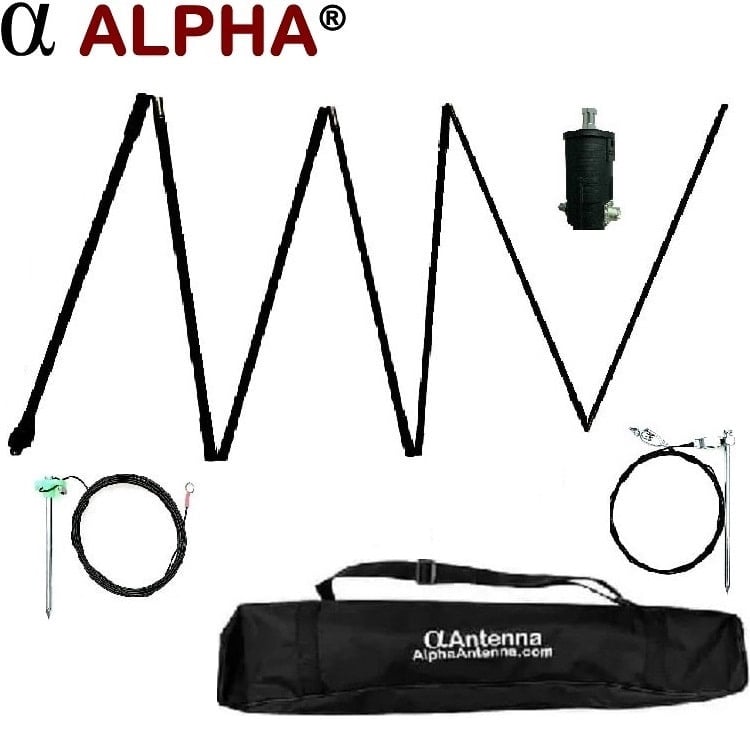

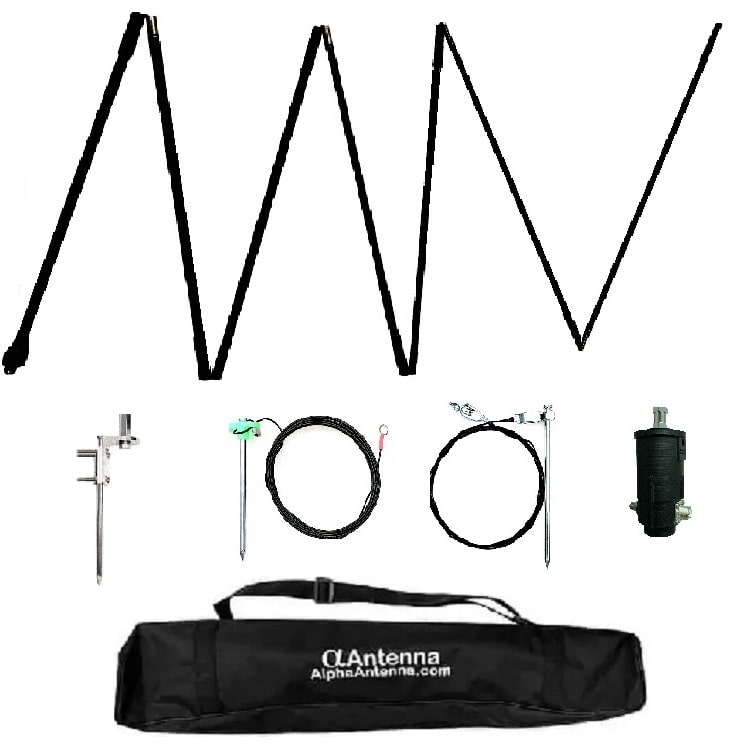

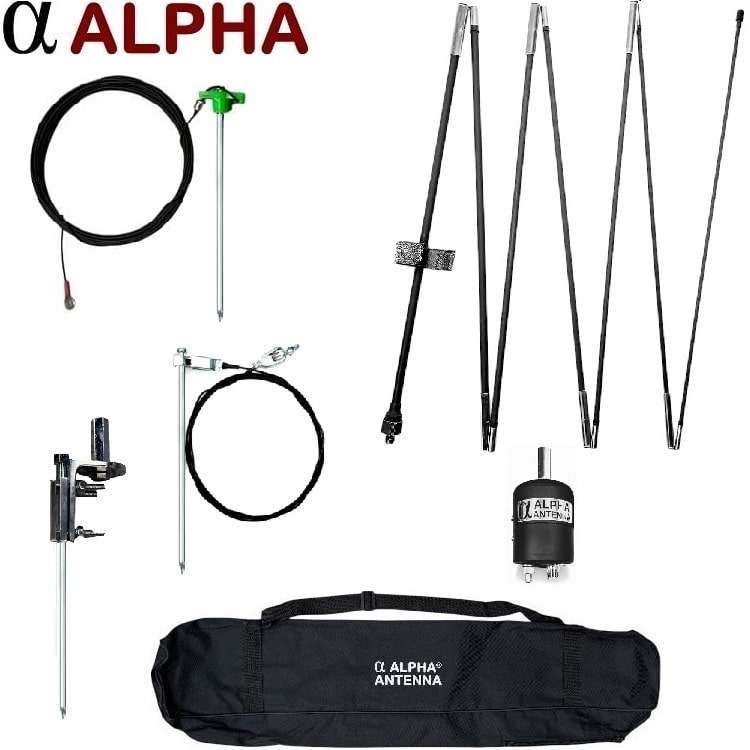

Included (1 each):
- Alpha Match constructed in a polyvinyl chloride housing.
- Mil 2.0 Whip (When storing the whip, fold the 9’ 6” whip starting from the top section.)
- Mount for 1.25″ O.D. Mast
- 25-foot wire NVIS element (Insulated copper steel clad wire insulated at and secured by the stake.)
- 8-foot ground wire (Insulated copper steel clad wire grounded at and secured by the ground rod.)
Analysis (Fully deployed)
Touch free operations:
The system enables you to switch bands or change frequencies without having to change switches, jumpers, or coils as it is an off-center fed dipole type vertical that is pre-tuned when deployed over real ground. Making this antenna especially useful if you have a disability such as being mobility or sight impaired.
As an added benefit, an external antenna tuner can be used to achieve a near perfect match if your HF antenna is installed over a poor ground or not placed in a clear area.
NVIS for EMCOMM
The optional 60 foot NVIS element activates your HF MIL 2.0 antenna for NVIS, which is needed for EmComm. You will not need a tuner when this element is installed, however, you may still use one if the antenna is installed over a poor ground or not placed in a clear area to achieve a lower SWR.
| 60 Foot element | |
| Band | SWR |
| 10 Meters | 1.61 |
| 12 Meters | 2.43 |
| 15 Meters | 1.75 |
| 17 Meters | 1.52 |
| 20 Meters | 2.20 |
| 40 Meters | 2.67 |
| 80 Meters | 2.08 |
Installation Note: Never Remove or Loosen any of the Bolts, Washers, or Nuts, in addition to any other hardware on the match.
We are dedicated to improving all of our antennas. Specifications and descriptions are subject to change without notice.
Let’s go deeper!
| Weight | 80 oz |
|---|---|
| Dimensions | 25 × 5 × 5 in |
| product type | Military Aviation Commercial Antenna, Portable HF VHF UHF Antennas, VHF UHF HF Antennas |
| Manufacturer | |
| brand | |
| color | |
| SKU | |
| aggregateRating | |
| availability | |
| condition | |
| mpn | |
| review | |
| VHF UHF HF Antenna type | HF Emergency EmComm Antennas, HF Military MilCom Antennas, HF Portable Stealth Antennas, VHF UHF Emergency EmComm Antennas |
| GTIN |
