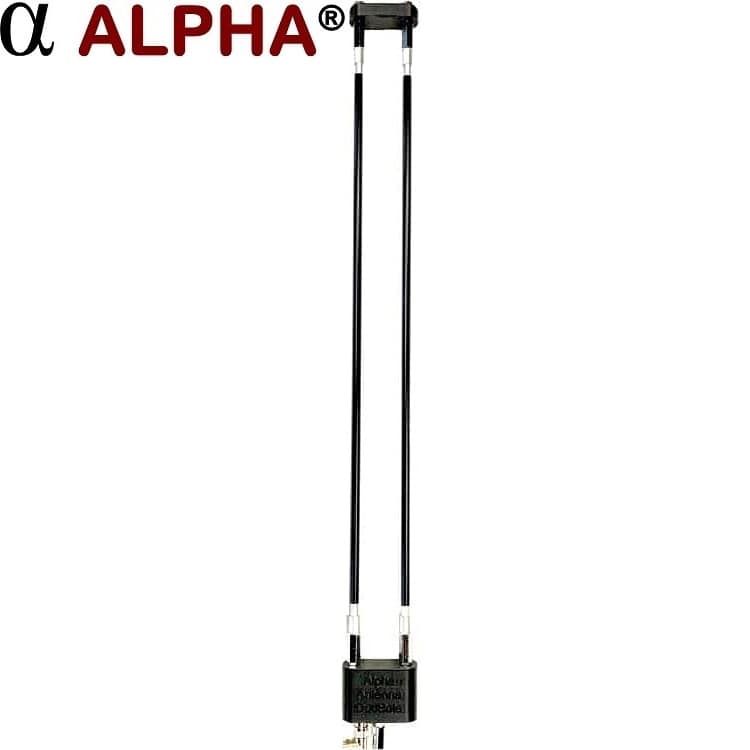

This Digital VHF HF Military Vertical Dipole Antenna that provides 0-2500km of Digital mode coverage that is perfect for SCADA and Stealthy Covert deployments.
SPECIFICATIONS
- Coverage: 1.8-7MHz, 7MHz-30MHz, 144-148MHz, and 220-240MHz TX/RX
- Missions that require digital HF communications using Ground-wave and/or Skywave signal patterns.
- Digital nation-wide ‘skywave coverage’ using HF.
- All mode ‘ground-wave coverage’ in a radius of 60-miles (dependent upon height) using VHF & HF.
- Useful when an isolated solution is required that requires no counterpoise.
- Deployable with digital quantum communications and/or spread-spectrum computing and RF equipment.
- For equipment that uses singular or simultaneous frequencies.
- Compact & light at 36 inches x 4 inches x 1.5 inches in size and weighs 22 ounces
Power Rating: 5W minimum digital input signal required with a maximum input power rating of 30W for Digital Modes. Including but not limited to the MIL-STD-188 M110a digital communications mode that is rated at 25 watts continuous with bursts of 100 watts digital for up to 1 minute using the MIL-STD Data Modem Terminal (MS-DMT) and Automated Message Terminal (AMT) software applications.

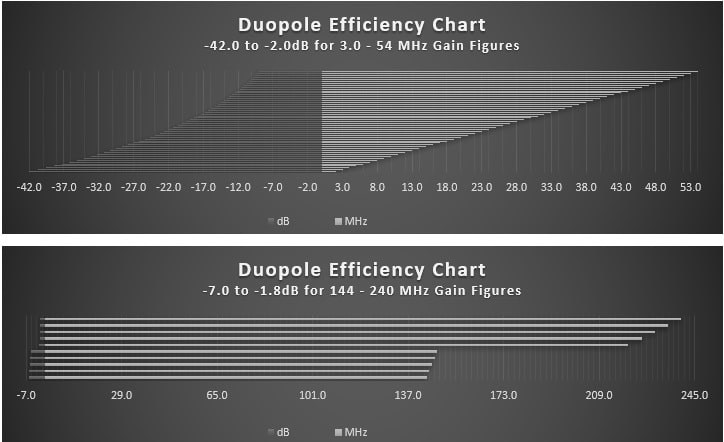

Calculated Gain Figures

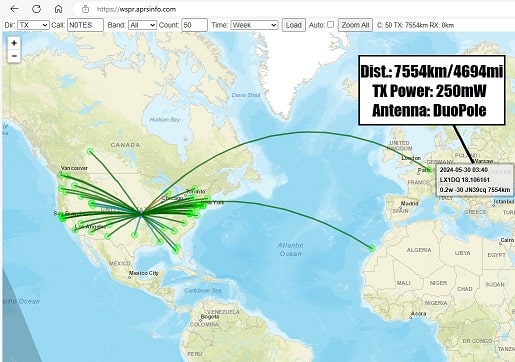

250MW WSPR TX Results (7-30MHz)

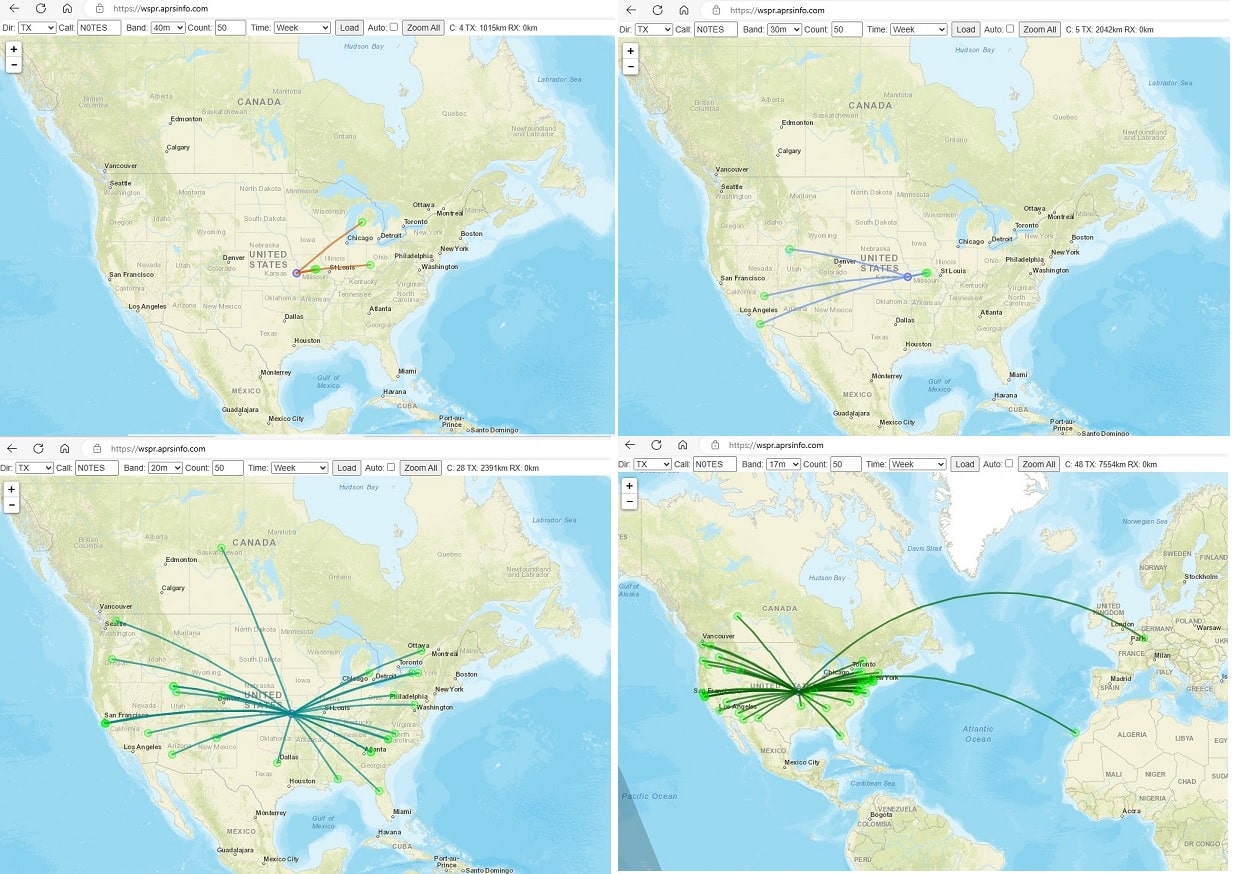

Break-out of TX Results (Click Map to Enlarge)
USAGE SCENARIOS
Read About Using HF Frequencies to Monitor Remote Pipelines
Where secrecy is paramount, digital communications through unseen methods plays a crucial role. Clandestine usage scenarios that are enabled by this Military Vertical Dipole Antenna known as the DuoPole include:
- Clandestine Communications in Cyber-Denied Environments:
- Context: In an era where internet-based communications are vulnerable to surveillance and attacks, intelligence operatives seek alternative methods.
- Scenario: Imagine a situation where an operative needs to communicate without exposing themselves to internet-based surveillance.
- Solution:
- Physical Separation: Platforms physically separated from the internet can be used. These platforms are not susceptible to internet-based surveillance or attacks.
- Radio Technology: Combine modern computer-based software with radio technology.
- Importance: Counterintelligence and law enforcement must adapt to these evolving communication methods.
- Countermeasures: Detect radio-based clandestine communications and secure evidence.
- Operational Scenarios where concealment and minimizing visibility are critical:
- Example: Monitoring a nearby building while parked outside.
- Setup: Transmitter, receiver, and antennas positioned out of sight from windows.
- Between Floors in an Office Building:
- Example: Operating from the third floor to the first floor.
- Setup: Transmitter, receiver, and antennas positioned out of sight carried out of site under clothing.
- Out in the Open:
- Example: Providing regional communications support while deployed in the field.
- Setup: Transmitter, receiver, and antennas positioned out of sight inside a backpack.
- Example: Providing regional communications support while deployed in the field.
- Example: Operating from the third floor to the first floor.
- Example: Monitoring a nearby building while parked outside.
- Monitoring remote pipelines:
SUMMARY
Clandestine antennas for digital communications are designed to operate covertly, avoiding detection by adversaries. Their success lies in striking a balance between effective communication and maintaining secrecy with a right sized antenna.
Use our Make an Offer Program and Click this button if you can’t afford full price.
Customer photos and videos
This system checked all of the boxes for a digital EmComm antenna. The rugged structure deployed in 60 seconds and has already withstood 80+MPH winds. Performance has been nation-wide based upon imperical testing using the ZachTech WSPR hardware.
