VHF UHF MilCom MOTO deploys quickly to establish stealthy Communications with Communities and Emergency EmComm Preparedness.
Use our Make an Offer Program and Click this button if you canโt afford full price.
Antenna Specifications
- Coverage: 144-148MHz, 420-450MHz, 900MHz, 125-190MHz, and 366.437-1016.437MHz TX/RX
- Power: 100 Watts
- RF Connection: PL-259
- Impedance: 50 OHMs
- Connector: PL-259
- Diameter: 0.433 inches
- Length: 18.75 inches
- Gain/Minimum VSWR on Amateur Radio Frequencies: 2.1dBi/1.22:1 (144MHz), 4.6dBi/1.86:1 (430MHz), 5.5dBi/1.04:1 (900MHz)
- Other Frequencies below 2:1
Included
- 0.433 O.D. MilStick Antenna element for maximum strength
- 3 3/4-inch Heavy Duty Magnet Mount for superior holding strength with hex-wrench
- 16 feet 6 inch, 95% Shielded RG58 A/U Coax with PL-259 connector for direct connection to the radio
Using the Magnetic Mount, easily establish proper vertical polarization for use with mobile to mobile/base or repeaters for high efficiency and uninterrupted range.
Analysis
Click Images to enlarge.

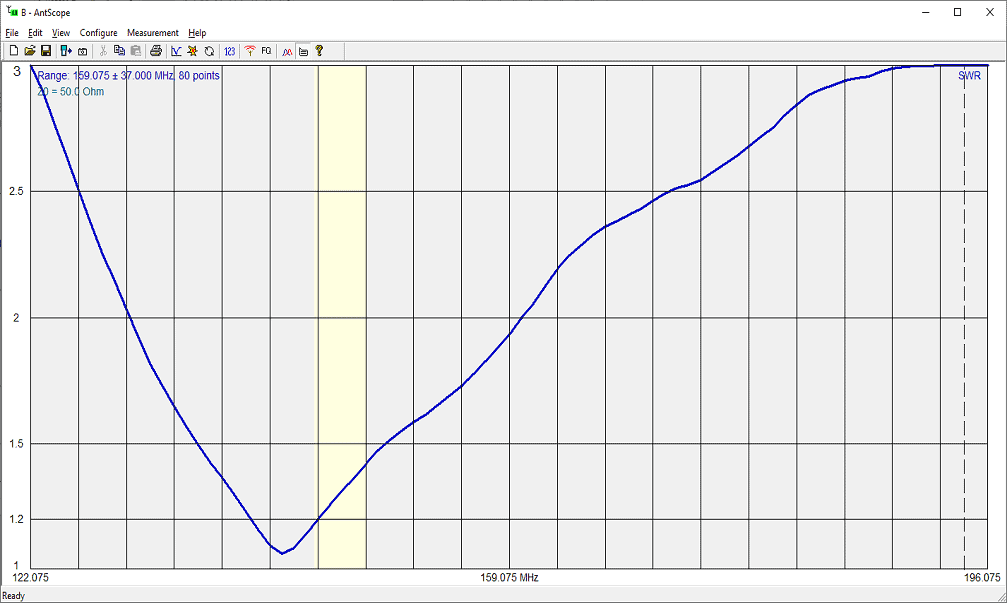

MilCom Frequencies: 125-190MHz and 366.437-1016.437MHz
Amateur Radio Frequencies: 144-148MHz, 420-450MHz, and 900MHz band
366.437 to 1016.437 MHz SWR Analysis
Amateur Radio (Ham) Frequencies
More Information
FAQs: Mobile HF antenna – Alpha Antenna
For further information, you may enjoy reading the article: What are the best EmComm Antennas?
We listen!
We are dedicated to improving all of our Mobile HF VHF UHF Antennas. Specifications and descriptions are subject to change without notice.
Ordered this antenna it came quickly and works great .
This is a great antenna paired with my IC-2730. If I could give more than five stars, I would. Also, ordering was easy and delivery was quick.
great signal and strong magnetic base
